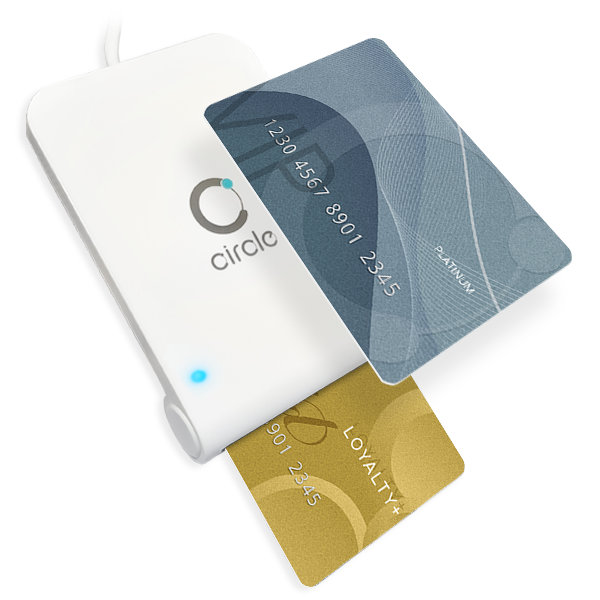

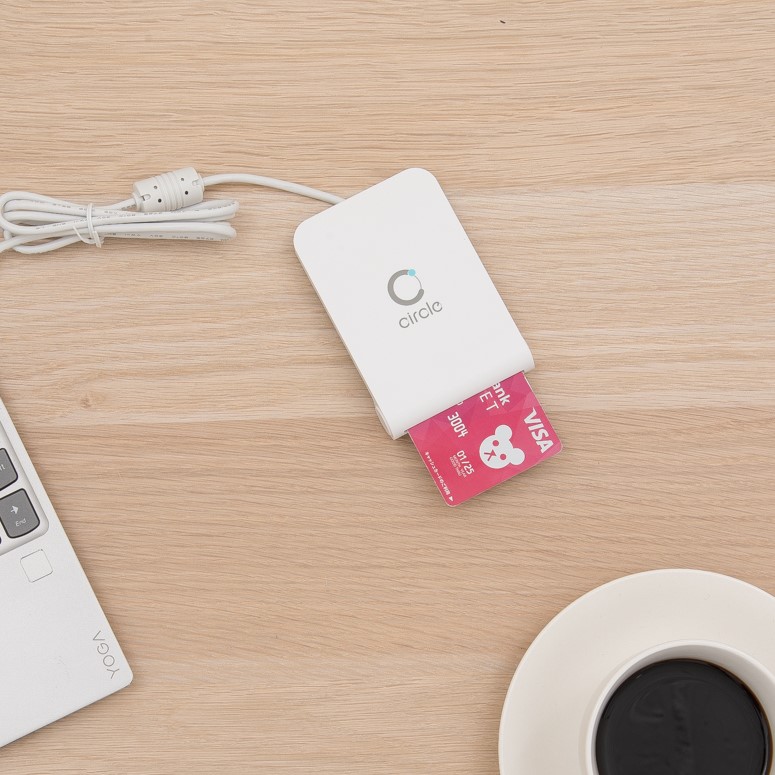

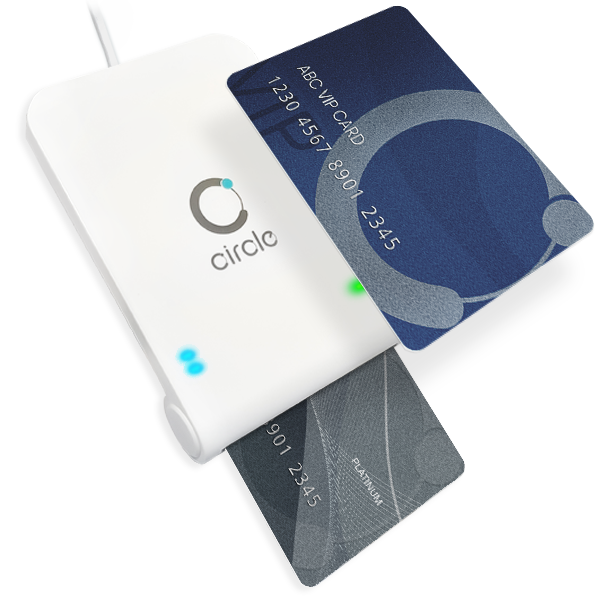

CIR315B - Dual Interface Smart Card Reader


Dual Interface Smart Card Reader

A powerful all-in-one device bringing solutions to contact and contactless applications


All-in-one and comprehensive

  • Supports ISO/IEC 14443, ISO/IEC 18092, ISO/IEC 15693, ISO/IEC 7816 Part 1/2/3/4 standards
  • Supports ISO/IEC 14443-4 Type A & B cards, ISO/IEC 15693-3 cards, MIFARE® series, FeliCa, J-LIS cards, Calypso and NFC Forum Type 1/2/3/4/5 Tags
  • Supports 1 x ISO/IEC 7816 Part 1/2/3/4 standard full-sized card slot and 1 x ISO/IEC 7816 Part 3/4 SAM slot
  • Supports full-sized ISO/IEC 7816 Class A/ B/ C cards with T=0 or T=1 protocol
  • Supports extended APDU
  • Complies with CCID standard
  • Conforms to PC/SC specifications
  • Firmware upgradable
  • Works on different operating systems
  • Optional connector types: USB A or USB C

Ordering Information

  • CIR315B-01: USB Type A Connector, with SAM slot (Standard)
  • CIR315B-02: USB Type A Connector, without SAM slot (MOQ is required)
  • CIR315B-03: USB Type C Connector, with SAM slot (MOQ is required)
  • CIR315B-04: USB Type C Connector, without SAM slot (MOQ is required)
* If order quantity does not meet the MOQ of CIR315B-03 & CIR315B-04, an extension cable of USB Type C Male to USB Type A Female enables you to connect CIR315B-01 with any USB Type C port of your devices. Contact us to learn more.
CIR315B - Dual Interface Smart Card Reader
Downloads for CIR315B

USB Windows Installer (CIR315)

13 Jun 23     |     v2.3.0.0  (Driver v2.3.0.0)     |

USB Windows Driver (CIR315)

13 Jun 23     |     v2.3.0.0     |

USB Linux Installer

12 Mar 24     |     v2.1.8  (Driver v2.1.8)     |

USB Mac Installer

20 Feb 24     |     v2.1.8  (Driver v2.1.8)     |

USB Linux & Mac Driver

05 Feb 24     |     v2.1.8     |

USB Android Library

29 May 24     |     v1.4.5     |
