CIR315C - Contactless Smart Card Reader

CIR315C

Contactless Smart Card Reader

A token sized reader offering maximum value for your contactless applications

Specifications

Portable and powerful

  • Supports ISO/IEC 14443, ISO/IEC 18092 and ISO/IEC 15693 standards
  • Supports ISO/IEC 14443-4 Type A & B cards, ISO/IEC 15693-3 cards, MIFARE® series, FeliCa, Calypso and NFC Forum Type 1/2/3/4/5 Tags
  • Supports extended APDU
  • Complies with CCID standard
  • Conforms to PC/SC specifications
  • Firmware upgradable
  • Works on different operating systems
  • Optional connector types: USB A or USB C

Ordering Information

  • CIR315C-01: USB Type A Connector (Standard)

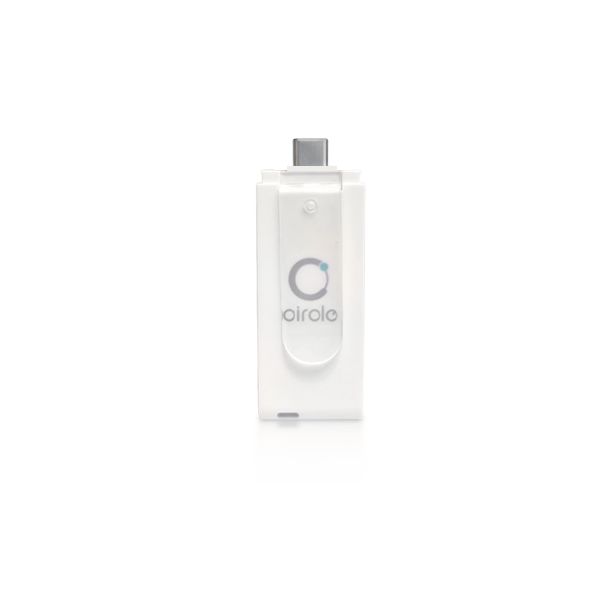

  • CIR315C-02: USB Type C Connector (MOQ is required)
* If order quantity does not meet the MOQ of CIR315C-02, an extension cable of USB Type C Male to USB Type A Female enables you to connect CIR315C-01 with any USB Type C port of your devices. Contact us to learn more.
CIR315C - Contactless Smart Card Reader
Downloads for CIR315C

USB Windows Installer (CIR315)

13 Jun 23     |     v2.3.0.0  (Driver v2.3.0.0)     |

USB Windows Driver (CIR315)

13 Jun 23     |     v2.3.0.0     |

USB Linux Installer

04 May 23     |     v2.1.7  (Driver v2.1.7)     |

USB Mac Installer

04 May 23     |     v2.1.7  (Driver v2.1.7)     |

USB Linux & Mac Driver

02 May 23     |     v2.1.7     |

USB Android Library

23 Dec 22     |     v1.4.4     |
